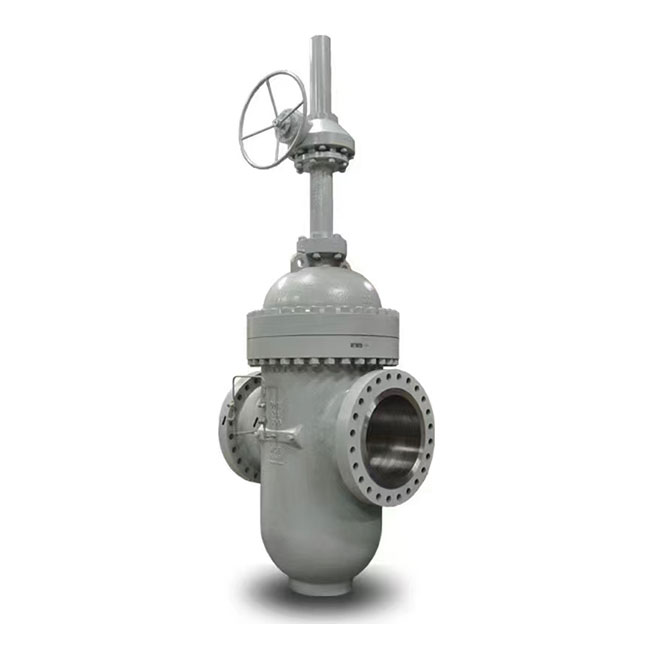

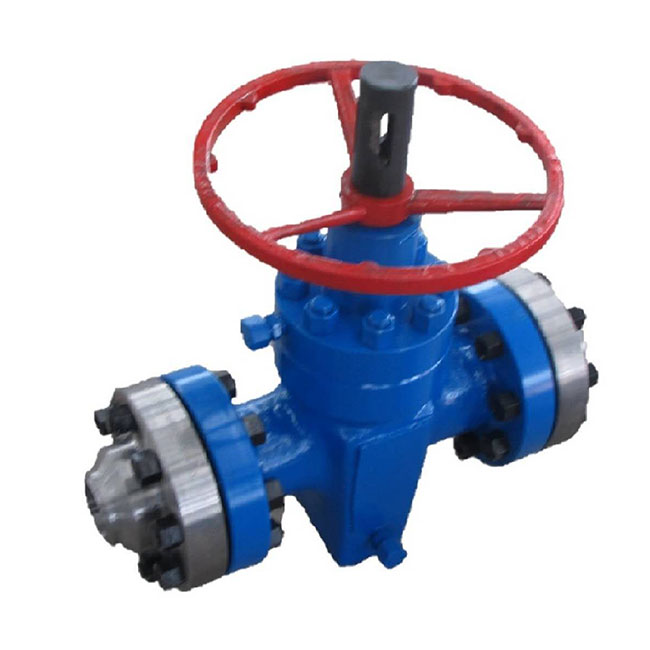

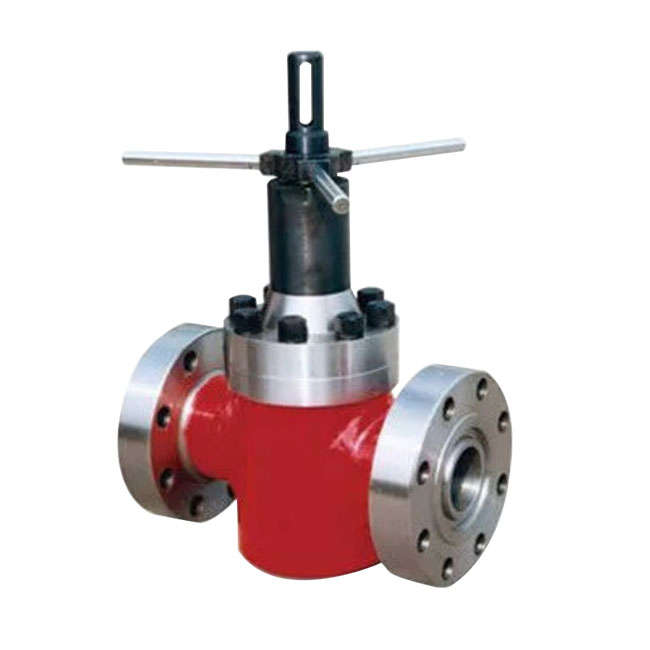

The locking device on the wellhead equipment.
Conditional passage —15-- 1000mm;
Working pressure — 1,6 2,5 4,0 6,3 10,0 16,0 21,0 35,0 42,0 70,0 MPa
Manufacturing standard — according to API-6A, API-6D
Working medium — oil, gas
Working medium temperature — from -60 °C to +120 °C;
MAYERIAL: 20L; WCB/09G2C; 20GL; 35CrMo/30XM LCC/12X18N9T; 12X18N9TL; 10X17N13M2T; 10X17N13M2TL; AISI304; AISI316; AISI321
Connection: flanged ,welded , coupling, BRS
Aggressive medium — H2S up to 25% and CO2 up to 25%;
Climatic version of UHL (HL),
Corrosive environment K1/ K2/ K3
The locking device on the wellhead equipment.
Conditional passage —15-- 1000mm;
Working pressure — 1,6 2,5 4,0 6,3 10,0 16,0 21,0 35,0 42,0 70,0 MPa
Manufacturing standard — according to API-6A, API-6D
Working medium — oil, gas
Working medium temperature — from -60 °C to +120 °C;
MAYERIAL: 20L; WCB/09G2C; 20GL; 35CrMo/30XM LCC/12X18N9T; 12X18N9TL; 10X17N13M2T; 10X17N13M2TL; AISI304; AISI316; AISI321
Connection: flanged ,welded , coupling, BRS
Aggressive medium — H2S up to 25% and CO2 up to 25%;
Climatic version of UHL (HL),
Corrosive environment K1/ K2/ K3
